Products / Oven & BBQ Grill
Oven & BBQ Grill Ignition Electrodes
Ceramic spark electrodes for gas BBQ grills, ovens, pizza ovens, commercial kitchen equipment and patio heaters, made to your drawing or sample.
Product List
Oven, Grill & Heater Electrode Products
Open a product to see its full specifications, dimension drawing and options. Every part can be adjusted to your drawing.
Products for this range are being added. Send us your drawing or a sample photo and we will quote a matching electrode.
Spark Ignition for Grills and Ovens
Gas grills and ovens put their burners inside a box or cabinet, so the igniter is often far from the flame. A grill igniter electrode or oven spark electrode solves this with a longer ceramic body, a bent tip that reaches the burner port, and a lead long enough to run through the appliance to the push-button, rotary or battery igniter.
These electrodes face grease, moisture, outdoor weather and high cabinet temperatures. We make them from 95% alumina ceramic with FeCrAl tips as standard, and choose a lead wire that suits the heat at your mounting point, from silicone rubber to PTFE or fiberglass-braided wire for the hottest areas.
- Threaded, bracket or clip mounting
- Long leads routed through grill bodies and oven cabinets
- Supplied as matched replacements or designed into new models
Electrode Types We Make
Most grill and oven electrodes fall into four groups. Send us a sample or photos and we will match the right design.
Threaded-body electrodes
A ceramic body with a threaded metal sleeve, fixed with a nut through the burner bracket or oven floor so the tip height stays exact.
Typical use: Gas oven burners, broil burners and grill main burners.

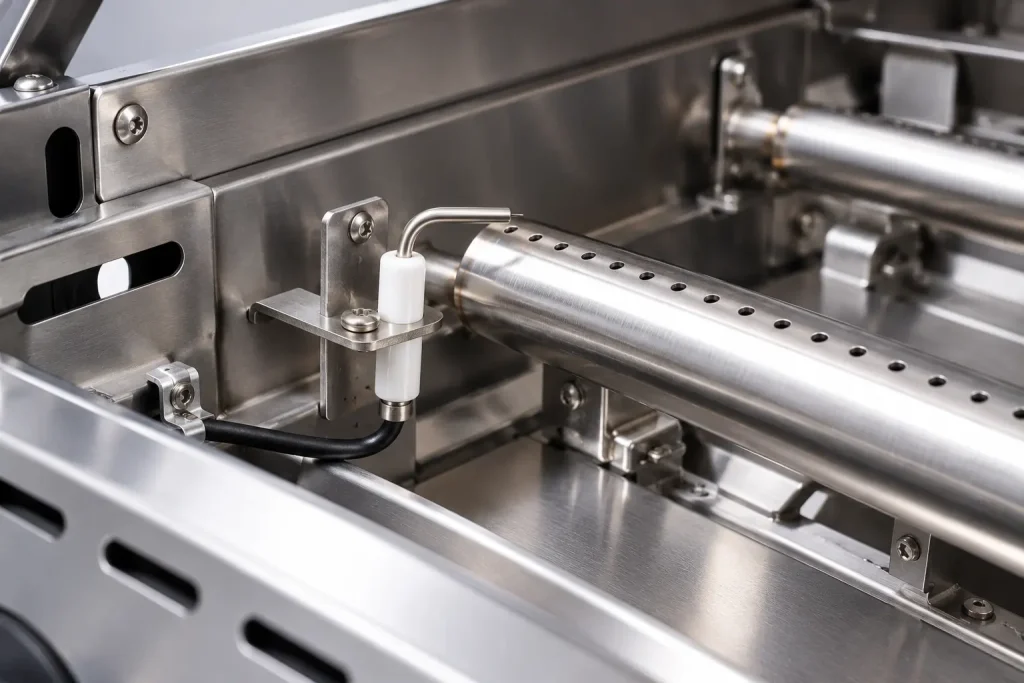

Bracket-mounted grill electrodes
The electrode is fixed to a small metal bracket or collector box beside the burner, with the tip bent toward the gas port.
Typical use: BBQ grill burners, side burners and rotisserie burners.
Long-lead electrodes
Electrodes supplied with a long, factory-fitted lead and terminal, ready to route through the grill body or oven cabinet.
Typical use: Push-button, rotary and battery-powered grill igniters.
Commercial kitchen electrodes
Heavier ceramic bodies and high-temperature leads for burners that run for hours every day.
Typical use: Pizza ovens, fryers, griddles, salamanders and catering ranges.
Spark Electrode or Hot Surface Igniter?
Gas ovens use two different ignition systems, and the word “igniter” is used for both. We make spark ignition electrodes. We do not make hot surface igniters (glow bars), which are a different part made from silicon carbide or silicon nitride.
If your oven clicks when you turn it on, it uses a spark electrode. If it stays silent and a bar glows orange before the gas lights, it uses a hot surface igniter.
| Spark ignition electrode | Hot surface igniter | |
|---|---|---|
| How it lights gas | High-voltage spark across a gap | Element heats until it glows |
| Main material | Alumina ceramic and metal pin | Silicon carbide or silicon nitride |
| Sound when starting | Clicking | Silent |
| Common in | Grills, European ovens, cookers, heaters | Many North American ovens and furnaces |
| Do we make it? | Yes | No |
Specifications You Can Customize
| Component | Options for oven and grill electrodes |
|---|---|
| Ceramic insulator | 95% alumina (Al₂O₃) as standard; 98% alumina on request; length, diameter and profile to drawing |
| Electrode wire | FeCrAl heat-resistant alloy as standard; Kanthal® or other alloys on request; diameter, length, bend angle and tip shape to drawing |
| Mounting | Nut and thread (e.g. M8, M10, M12), bracket or clip-in fixing |
| Lead wire | Silicone rubber, PTFE or fiberglass-braided high-temperature wire; length and color to order |
| Terminal | 2.8 mm, 4.8 mm or 6.3 mm female push-on, ring terminals, 4 mm plugs or customer-specified connectors |
| Configuration | Single-pin ignition or ignition with ground pin |
What We Match to Your Appliance
- Tip position and gap to the burner port
- Thread size or bracket hole pattern
- Ceramic length through the burner box or oven floor
- Lead length and routing to the igniter
- Lead material for the temperature at the mounting point
Send a drawing, a used part or photos with a ruler, and we will prepare a matching drawing for your approval.
Where These Electrodes Are Used
- Gas BBQ grills: main, side and rotisserie burners
- Built-in and freestanding gas ovens and cookers
- Pizza ovens, fryers, griddles and salamanders
- Outdoor patio heaters and portable gas heaters
- Gas fire pits and outdoor kitchens
Also Known As
| Name | Common in |
|---|---|
| Grill igniter electrode / gas grill electrode | North America |
| BBQ igniter electrode | UK, Europe, Australia |
| Oven spark electrode / oven spark igniter | Europe and appliance makers |
| Oven spark plug | Middle East, South Asia, Africa |
| Patio heater ignition electrode | Outdoor heating suppliers |
Oven & Grill Electrode FAQ
Do you make hot surface oven igniters?
No. We make spark ignition electrodes only. If your oven lights silently with a glowing bar, it uses a hot surface igniter, which is a different product.
Can you supply grill electrodes with a long lead for a battery igniter?
Yes. We fit the lead and terminal at our factory to the length and connector you need, so the electrode plugs straight into a push-button, rotary or battery igniter.
Which lead wire should I use near a hot oven or grill burner?
Silicone rubber leads suit most grill and cabinet areas. For mounting points close to the burner or inside a hot oven floor, PTFE or fiberglass-braided high-temperature wire is the safer choice. Tell us where the lead runs and we will recommend one.
Do you make electrodes for patio heaters and gas heaters?
Yes. Patio heaters and portable gas heaters use spark electrodes similar to grill electrodes, and we make them to drawing or sample.
What is the minimum order?
Simple, low-cost electrodes usually start at 50,000 pieces per model, while larger and more complex designs can be ordered in smaller quantities. See how we work for samples, tooling and order details.
Need an Oven or Grill Electrode?
Send a drawing, a used part or photos with a ruler, and tell us the quantity. We will reply with a matching design and quotation.
